Minebar Integration Kit

Ford Ranger / Everest

PART NUMBER

MIK-FR01

Minebar Integration Kit – Ford Ranger/Everest

• Significantly reduce the time required for each Minebar and Hand Brake Alarm installation.

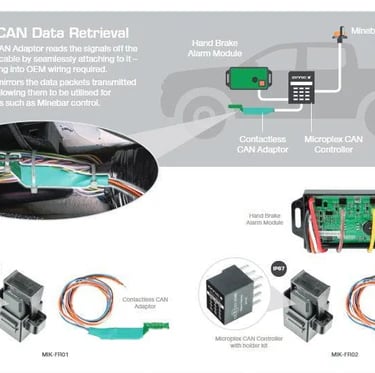

• Connects to the CAN, providing functionality for a Hand Brake Alarm and Minebar (stop-tail/indicator/reverse lights, and reversing alarm).

• Kits utilise the non-intrusive Contactless CAN Adaptor to access OEM signals.

• Vehicle warranty concerns alleviated as no physical connection is made to existing CAN wiring.

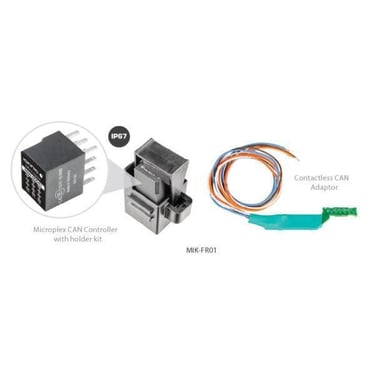

• Ultra-compact Microplex CAN controller with holder rated to IP67.

• Microplex is pre-programmed to be compatible with the Ford Ranger/Everest system.

Voltage : 12–24V
Current Draw : 35mA @ 12V
Operating Temperature : -40°C to 70°C

Minebar Integration Kit (With Handbrake Alarm)

Ford Ranger / Everest

PART NUMBER

MIK-FR02

Minebar Integration Kit (With Handbrake Alarm) – Ford Ranger/Everest

• Significantly reduce the time required for each Minebar and Hand Brake Alarm installation.

• Connects to the CAN, providing functionality for a Hand Brake Alarm and Minebar (stop-tail/indicator/reverse lights, and reversing alarm).

• Kits utilise the non-intrusive Contactless CAN Adaptor to access OEM signals.

• Vehicle warranty concerns alleviated as no physical connection is made to existing CAN wiring.

• Ultra-compact Microplex CAN controller with holder rated to IP67.

• Microplex is pre-programmed to be compatible with the Ford Ranger/Everest system.

Voltage : 12–24V
Current Draw : 35mA @ 12V
Operating Temperature : -40°C to 70°C
